Mini MacPro™ Series Thermoplastic Striping Equipment | MRL Equipment

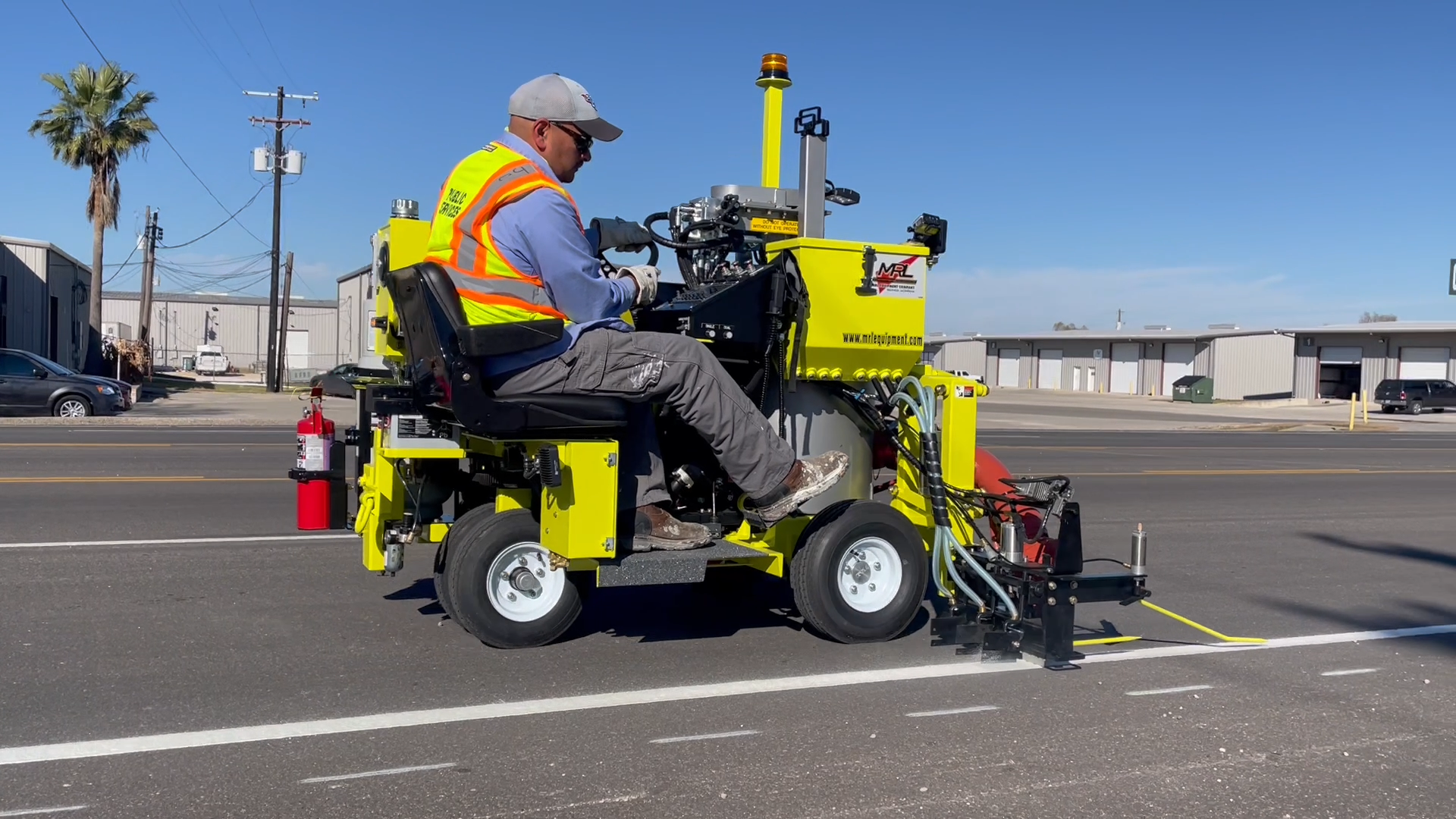

The Mini MacPro is built for unmatched versatility and performance on any job site. Designed with both right-and left-hand configurations, it's ideal for seamless edgeline and centerline applications. Its compact footprint and agile handling make it perfect for intersections and tight work zones—without sacrificing speed or productivity.

Apply thermoplastic markings up to 24 inches wide in a single pass, and switch between 4", 6", 8", and 12" lines instantly with the innovative Quad Gun system—no need to stop or reset. Choose from a standard non-pressurized, single-drop bead system or upgrade to a pressurized bead system for enhanced visibility and performance.

Whether you're tackling large areas or detailed layouts, the Mini MacPro delivers the control, efficiency, and results your crew needs. Whether you're a small contractor, a municipal crew, or a large-scale production outfit, the Mini MacPro is the right fit for your operation.

Line widths of 4", 6", 8", 10"; 12", 14", 18" and 24"
Easily adjustable thermoplastic extrusion dies to enable quick stripe width changes
Ribbon extrusion application; optional screed extrusion available
Available in high-visibility lime squeeze green color configuration; custom options available

Single or double non-pressurized bead system available
Single or double pressurized drop bead system available
Gross Power: 2 Cylinder 25 HP
Kohler Command Series
Material Tank Capacity: 400 lb
Glass Bead Tank Capacity: 100 lb
EASY TO USE
- Simple controls
- Operator control console available in multiple languages
- Infinitely variable speed control of 0-8 mph
HYDRAULIC SYSTEM
- Hydrostatic propulsion
- Dual front-drive motors
- One-peddle forward/reverse

MRL_Mini_Mac_Pro_TM (1)

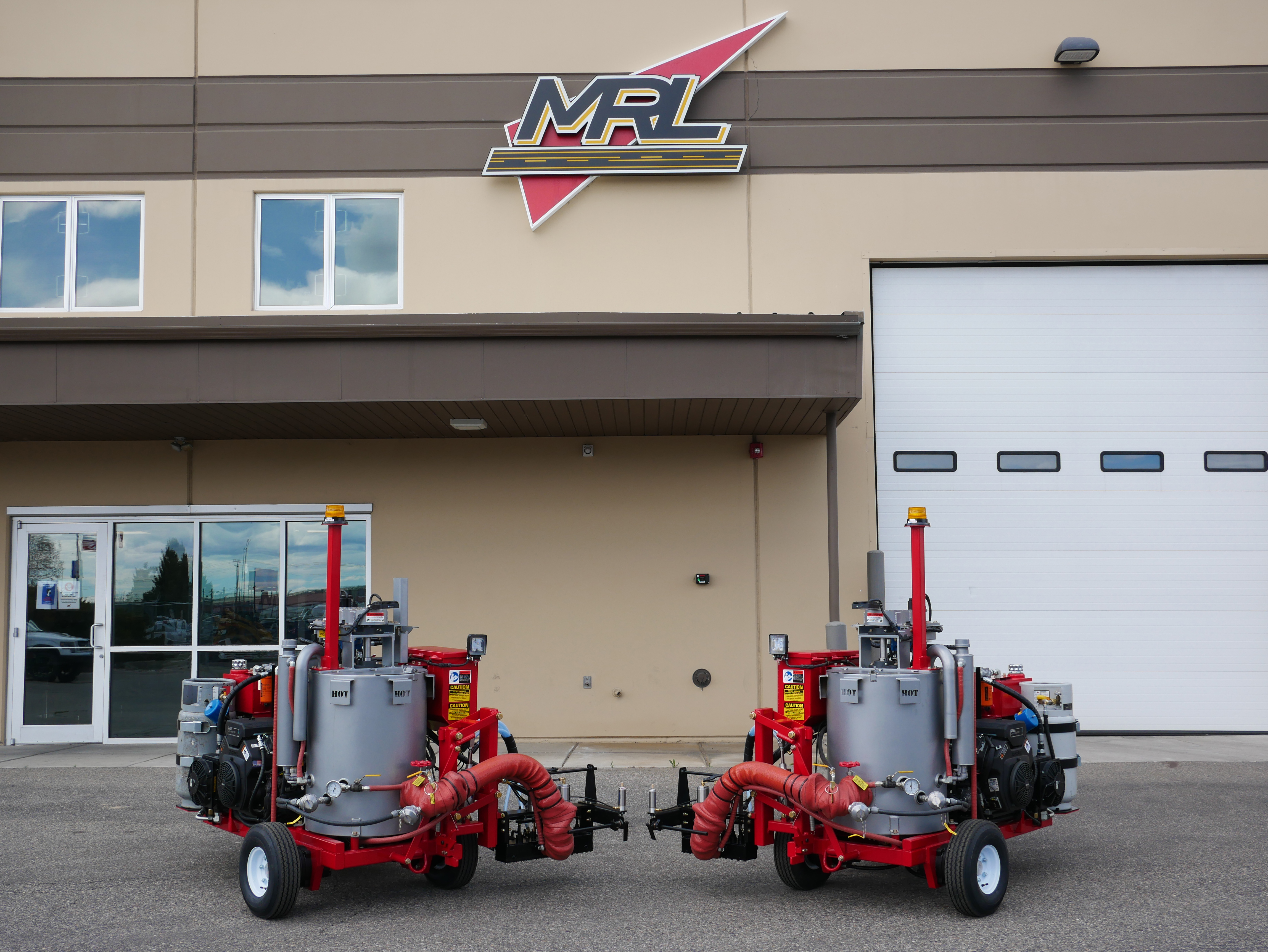

City of Atlanta

MRL Equipment’s technicians are the most experienced and road-tested support team in the industry, with expertise earned through years as stripers. From on-site training to virtual visits and phone calls, our experts assist you with technical issues, questions, and troubleshooting.

Our in-field technicians are here to support our new equipment training and startups, in-field repairs, and additional training of your teams.
